| Model |
| [SWG-SA] |

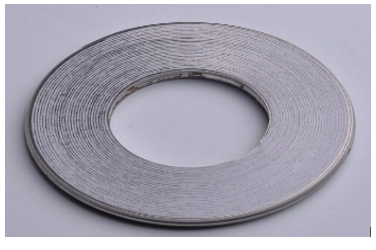

| Spiral Wound Gasket Basic Type |
| Basic type spiral wound gasket consists of a thin metallic strip and soft non-metallic filler that are simultaneously wound on a rotating mandrel. The metal hoop is pre-formed with a V or W shaped profile which allows t... |
| Model |
| [SWG-SC] |

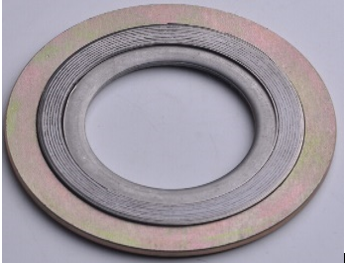

| Spiral Wound Gasket With Outer Ring |
| Solid outer ring spiral wound gaskets consist of a metal guide ring and sealing element. The external ring accurately centers gasket on flange face: provides additional radial strength to prevent gasket blowout and acts... |
| Model |
| [SWG-SB] |

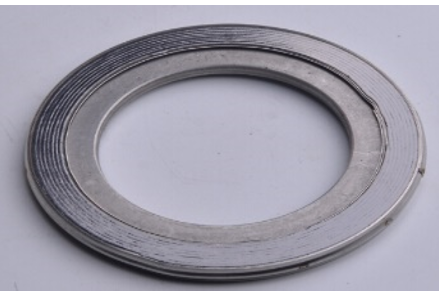

| Spiral Wound Gasket With Inner Ring |
| Solid inner ring spiral wound gasket has an inner ring. Solid inner metal ring acts as a compression stopper and fills the annular space between flange bore and the inside diameter. Designed to prevent accumulation of s... |
| Model |
| [SWG-SD] |
| Spiral Wound Gasket With Inner and Outer Ring |
| This spiral wound gasket has solid outer and inner ring .However an inner ring has been inserted to enhance gasket performance and an external guide ring accurately centers gasket on flange face.... |
| Spiral Wound Gasket Brochure |
|---|
 |
| Sprial Wound Gaskets B16.20 Class 150, 300, 600, 900 |
|---|
|
 |

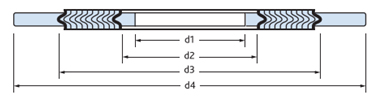

| Dimensions Of Spiral Wound gaskets as per ASME B16.20 Class 150, 300, 600, 900 |
|---|
|
| |
| Ring Type Gasket Dimensions as per PN 6 |
|---|
|
| |
| Ring Type Gasket Dimensions #150 to 2500 as per ASME B 16.21. |
|---|
|
| |
| Ring Type Gasket Dimensions as per BS 10 |
|---|
|
| |
