Non Metalic
| Non Metalic |
|---|

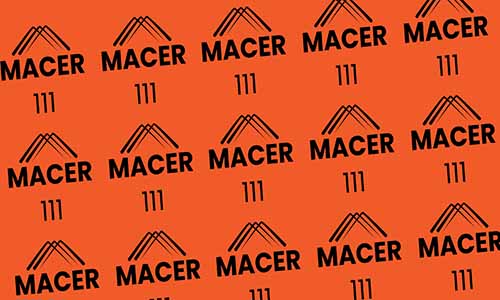

MACER 111  |
 |
| MOC |
| Chrystolile Asbestos Fibre, Synthetic (NBR) & Natural Elastomer, Inorganic Filler |
| Application |
| Suitable for low stress conditions. To seal air, water, steam & various alkaline chemcials. |
| Operating Guidelines |
| Max Operating Temperature:300/572 Max Operating Pressure:30/426 |
| Non Metalic |
|---|

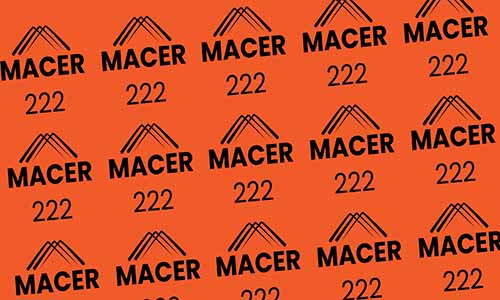

| MACER 222 |
 |
| MOC |
| Chrystolile Asbestos Fibre, Synthetic (NBR) & Natural Elastomer, Inorganic Filler |
| Application |
| Suitable for low & medium stress conditions . To seal air, water, steam, saline solution, alkalies, ammonia & alkalies and mildly aggressive media. |
| Operating Guidelines |
| Max Operating Temperature:380/716 Max Operating Pressure:45/640 |
| Non Metalic |
|---|

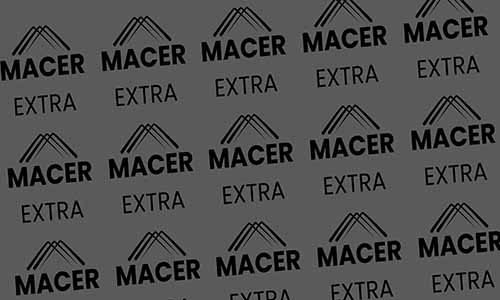

| MACER EXTRA |
 |
| MOC |
| Chrystolile Asbestos Fibre, Synthetic (NBR) & Natural Elastomer, Inorganic Filler |
| Application |
| Suitable for medium stress conditions.To seal air, water, steam, natural gas petrol, saline solution, alkalies, ammonia & other non aggressive media. |
| Operating Guidelines |
| Max Operating Temperature:450/842 Max Operating Pressure:80/1136 |
| Non Metalic |
|---|
| MACER 333 |
 |
| MOC |
| Chrysotile Asbestos Fibre,synthetic El as t om er (NBR & SBR),Inorganic Filler |
| Application |
| Suitable fo r high stress condi tions. To seal water, steam, producer gas, propane gas, alkalies, am monia & other non aggressive m edia |
| Operating Guidelines |
| Max Operating Temperature:550/1022 Max Operating Pressure:150/2130 |
| Non Metalic |
|---|
| MACER OIL |
 |
| MOC |
| Chrysotile Asbestos Fibre,synthetic Elastomer (NBR) |
| Application |
| Suitable for high stress conditions. To seal motor oil, steam, transmissions & hydraulic fluids, low temp. oil, hot oils & various aromatic Hydrocarbons solvents & Refrigerating oils. For IC engines, com pressors. chemical plants. |
| Operating Guidelines |
| Max Operating Temperature:550/1022 Max Operating Pressure:150/2130 |
| Non Metalic |
|---|

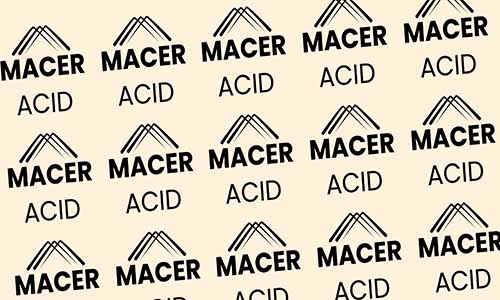

| MACER ACID |
 |
| MOC |
| Chrysotile Asbestos Fibre CSM Elastomer |
| Application |
| Suitable for low & medium stress conditions . To seal organic & inorganic acids, alkalies,alcohols, esters & ketones. |
| Operating Guidelines |
| Max Operating Temperature:210/410 Max Operating Pressure:150/2130 |
| Non Metalic |
|---|

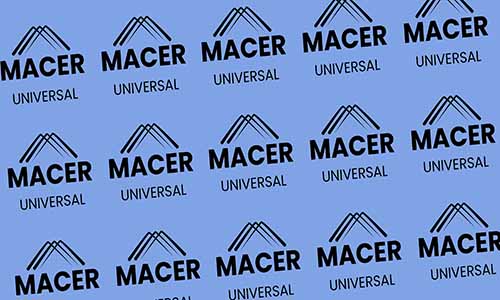

| MACER UNIVERSAL |
 |
| MOC |
| Chrysotile Asbestos Fibre,Synthetic Elastomer (NBR) |
| Application |
| Suitable for high stress conditions .To seal air, water, steam, alkalies, alochols esters, ketones etc. Suitable for most fluid . |
| Operating Guidelines |
| Max Operating Temperature:550/1022 Max Operating Pressure:200/2840 |
Metalic
| Metalic |
|---|
| MACER 111 Metallic |
 |
| MOC |
| Chrysotile Asbestos Fibre,synthetic & Natural Elastomer,Wire Reinforcement |
| Application |
| Suitable for low stress condit ions with wire reinforcements. To seal water, steam, air & various alkaline chemcials. . |
| Operating Guidelines |
| Max Operating Temperature:350/662 Max Operating Pressure:35/497 |
| Metalic |
|---|

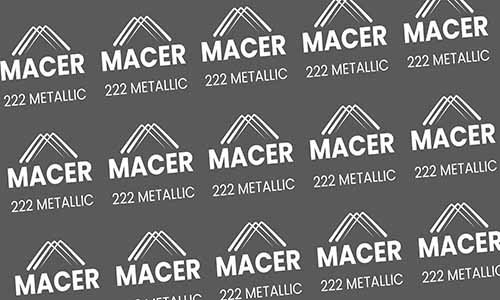

| MACER 222 METALLIC |
 |
| MOC |
| Chrysotile Asbestos Fibre,synthetic & Natural Elastomer,Wire Reinforcement |
| Application |
| Suitable for low & medium stress conditions with wire reinforcements.To seal water,steam,natura gas,saline, ammonia & midly aggressive media. . |
| Operating Guidelines |
| Max Operating Temperature:415/779 Max Operating Pressure:80/1136 |
| Metalic |
|---|

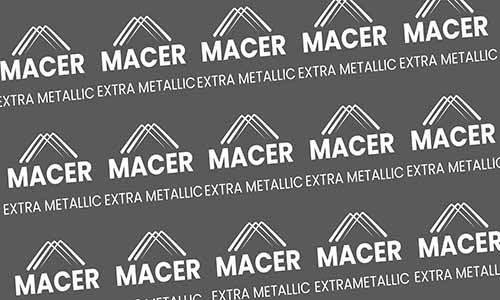

| MACER Extra Metallic |
 |
| MOC |
| Chrysotile Asbestos Fibre,Synthetic (NBR) & Natural Elastomer,With Wire Reinforcement |
| Application |
| Suitable for medium stress conditions. To seal water, steam, natural gas, petrol, saline solution, alkalies, ammonia & other nonaggressive media. . |
| Operating Guidelines |
| Max Operating Temperature:480/896 Max Operating Pressure:90/1278 |
| Metalic |
|---|
| MACER 333 Metallic |
 |
| MOC |
| Chrysotile Asbestos Fibre,Synthetic Elastomer (NBR &SBR),With Wire Reinforcement |
| Application |
| Suitable for high stress conditions. To seal water, steam, natural gas,saline solution, alkalies, ammonia &mildly aggressive media. . |
| Operating Guidelines |
| Max Operating Temperature:600/1112 Max Operating Pressure:160/2272 |
| Metalic |
|---|

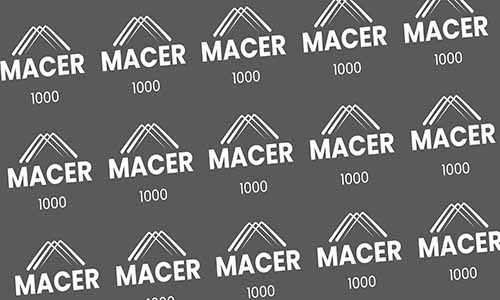

| MACER 1000 |
 |
| MOC |
| Chrysotile Asbestos Fibre,Synthetic Elastomer (NBR) With Wire Reinforcement |
| Application |
| Suitable for high stress conditions. To seal motor oils, hydraulic fluids, low temp. oil, steam, alkalies, anti freeze, refrigerating oil, water, air, fuels, alcohols , IC eng ines |
| Operating Guidelines |
| Max Operating Temperature:600/1112 Max Operating Pressure:200/2840 |
