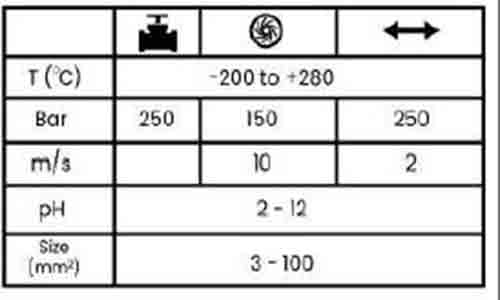

A premium pure PTPE yarn packing with no additive or lubricants. This premium packing is resilient with low coefficient of friction, dimensional stability with minimum frictional heat.

Service: The packing is chemically inert. it is recommended for oxygen service & oxidising media for PUMPS & VALVES, MIXERS, agitators, Concentrated acids, alkalies, aggressive vapours and gases. It can also be used in food industry.

Not to be used on Molten alkali Metals & Fluorine

Special tough 100% pure PTFE packing impregnated with special ultra chemical inert suspensoid. The packing is diagnally braided. Our special impregnation process increased compressiblity and recovery factors. This packing responds readily to pressure changes and forms a long lasting gland seal having very low co-efficient of friction.

Service: A good packing for control valves even under high pressure conditions, reciprocating rods, pumps, handling corrossive gases, solvents, acids, hydrocarbons, ammonia, food stuffs and pharmaceutical industries. .

Not recommended to use on Molten alkali Metals such as Sodium, Potassium & gaseous Fluorine as these can attack at high temperatures and pressures.

Special all chemical packing manufactured from pure PTFE fibres, having duplex braid construction to increase dimensional stability treated with inert high temperature resisting lubricant to resist migration and to display compressibility and recovery charecteristics. The packing is safe, more flexible and non-toxic. Fluids can be sealed with the minimum of gland pressure consequently there is less friction as well as heat buildup.It is an inert, virtually indestructible packing, having a lower co-efficient of friction with good compressive strength

Service: A good packing to seal against concentrated acids, alkali solutions, oils, corrosive gases, food stuff and pharmaceutical industries. This packing is not recommended to use on molten metals and gaseous fluorine

This is a super combination cross braided packing specially designed with lubricated pure PTFE on the faces and special yellow synthetic fibre filaments on the corners. Due to its multifibre dense and homogenous construction the packing is most suited to all fluids including corrosive chemicals, even under extremely high pressure conditions. The packing has exceptionally good dimensional stability, creep resistance and non toxic. Packing will not provide extraneous stresses on plungers which damage both packing and plunger under high pressure conditions.

Service: Recommended for use in diaries, food stuff, beverages, pharmaceutical industries and refineries. A good packing for high pressure pump handling carbonate and ammonia solutions in the fertilizer industry, miscellaneous chemicals in the petro chemical industry, feed water pumps, etc.

Universal super performance packing duplex plaited form of sophisticated special fluro polymer fibre intimately bonded with graphite which will improve thermal conductivity and lubricity while retaining the quality of extremely low friction.The presence of graphite acts as a heat generated at the pump shaft or value spindle. Thus the resiliency and compressibility of the packing last long. This packing doesnot harden and runs cool. It has a low co-efficient of thermal expansion.

Service: The packing is recomended for oils and solvents, caustics, acids, dyes, chemicals, white and black liquor, wood pulp, detergent with the exception of strong oxidising agents, aqua regia, fluorine and fuming nitric acid.

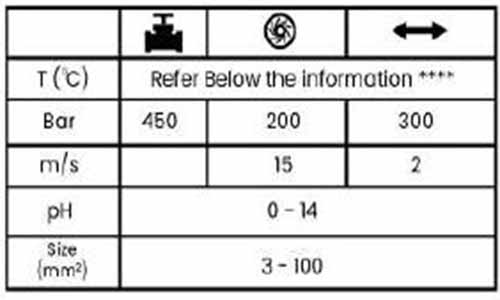

Expanded Pure Graphite Braided Gland Packing having purity of graphite of 99.5%. Packing is chemically inert, highly resilient with self lubricating low frictional co-efficient & having high thermal conductivity. Packing is also treated with anti frictional graphite lubricant to accommodate self adjustment on tightening of the gland. Prevents seepage/ leakage through the braiding. Further, sacrificial metal corrosion inhibitor is incorporated into the packing to prevent galvanic corrosion of the sleeves/ shaft. Enjoys the advantages of a braided packing having high Flexibility/ Resiliency & also having all the characteristics of Flexible Pure Graphite i.e. the packing does not contain oil, grease or binder of any kind. This packing dissipates heat properly as it is a good thermal conductor leading to its longer, leakage free life.

Service: Superheated and saturated steam, Non- oxidising fluids, Dyes and chemicals, Fuel oil & Lube oil, Hydrocarbon etc. - 200 to +3300(Non Oxidising)
- 200 to +600(Oxidising)
- 200 to +650(steam)

Expanded Pure Graphite Braided Packing is manufactured with reinforced Inconel wire or stainless steel wire and is highly recommended for high temperature & high pressure applications. It enjoys the advantages of braided packing having high Flexibility / Resiliency and also have all the characteristics of Flexible pure Graphite i.e. the packing does not contain oil, grease or binder of any kind or any other contamination. This packing dissipates heat property as it is a good thermal conductor leading to its longer, leakage free life. Expanded pure Graphite packing with metallic wire reinforcement can be supplied in rope form & also in pre formed rings in single oblique cut to your custom made exact size.

Service: Superheated and saturated steam, Non-oxidising fluids, Dyes and chemicals, Fuel oil & Lube oil Hydrocarbon etc.
- 200 to +3300(Non Oxidising)
- 200 to +600(Oxidising)
- 200 to +650(steam)

Expanded pure graphite braided gland packing having Inconel wire mesh jacket over each yarn along with multiple reinforcement of inconel wire inside each yarn.

Service: An ideal sealing material having excellent thermal conductivity, impermeability for gases and liquids. Best suited for values handling high pressure super heated steam, pumps, compressors, salt solution, solvents, oil, hydrocarbons, petroleum distillates, acids & alkali solutions. Very flexible, resilient compression packing for critical application.

This Abrasion resistant, inert packing is produced from tough high strength ARAMID fiber filament yarn with each strand fully impregnated with PTFE high temperature resisting lubrications. The packing has flexibility, resiliency, lubricity with excellent thermal and dimensional stability, treating the shaft gently.

Service: For abrasive media & slurry applications in valves, mixers, agitators, rotary and reciprocatory applications in solvents, mild acids and alkalies, petrochemicals, paper & pulp, pharmaceuticals.

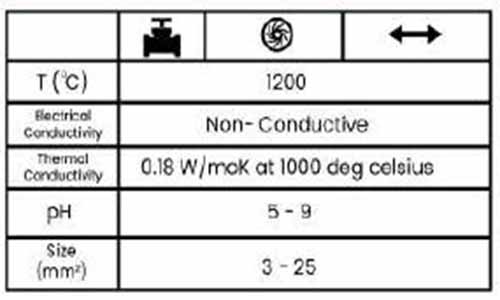

Ceramic fibre braided high temperature insulation rope reinforced with e- glass fibre

The best choice for thermal insulation. Much better substitute for conventional asbestos repes, which are not meant for use over 450* C. Manifold service life in comparison to the life than asbestos ropes. Very low loss upon ignition. Saves energy loss, reduces downtimes.

Service: Direct exposure to flame, hot blast, molten alumina, acids and alkalins.

Applications: Boiler doors, expansion joints, coke ovens, kiln cars, blast furnaces, pipe wrapping, lagging etc.

The packing is plaited from long staple cotton fiber yarn impregnated with high grade lubricants. The packing has resiliency and flexibility.

Applications: For high speed centrifugal and reciprocating pumps, condensate pumps, air compressors & refrigeration, ammonia, alcohol, water & hydraulic services.

Available sizes:
3mm-10mm - Spools of 10 mtr
11mm and 12.5 mm - spools of 3 mtr and above in Boxes in Kg.

The packing is made from longline natural figer yarn in square braided construction. The yarn is throughly impregnated during construction process with a non graphite lubricant and further surface treated with a special water resistant lubricant.

Applications: The packing is designed basically as a hydraulic purpose pump packing for cold water, sea water, river water in reciprocatory, rotary pumps as STERN GLANDS in shipping / marine industry.

Natural vegetable packing but with Graphite impregnation as an added lubricant. The Packing is resilient and flexible.

Application: Rotary, reciprocating pumps, in ship building and domestic fresh water pumps.

A high purity carbon filament yarn packing having a good thermal conductivity, flexibility, resiliency, elasticity and low friction

Service: The packing is for high speed high temperature and pressure applications in sealing boiler feeding pumps, super heat steam agitators, mixers, digester crystralizers, solvents, oils, non-oxidising mineral acids and alkalies. It is good valve stem packing.

Not recommended for Fluorine, Nitric acid, Aqua regia & Strong Oxidisers.

Carbonel is a specially developed packing made from Carbon yarn reinforced with special quality inconel wire. Its inherent chemical stability, high thermal conductivity and low friction co-efficient makes it ideally suited to sealing applications involving high temperatures and pressures.

Service: The highly carbonised structure with metal reinforcement makes this packing suitable for high performance of superheated high temperature and pressure steam valves including main stop valves, control valves etc.

A 100% pure GRAPHITE yarn packing impregnated with a blocking agent Graphite Fibres do not harden or glaze at high temperature. With lubricating value of graphite, the packing is frictionless eliminating shaft wear. The packing has high heat conductivity, high temperature resistance and low co-efficient of expansion.

Applications: The packing has excellent chemical resistance . Application include valves, centrifugal and rotary pumps, mixers, agitators, at high surface speeds handling aggresive fuids such as acids, alkalies, oils, solvents, steam, hot tar 7 refinery services.

Not recommended for Oxygen, Oxidising Environment, Fuming Nitric acid

Present day gland packing manufacturing activities are concentrated on synthetic yarn sealing material. there are other natural fibres still play a versatile role with their unique properties. Prominent among them is Ramie an extremely strong top quality fiber of plant kingdom. To manufacture gland packings these fibres are uniquely impreganated with PTFE dispersion by a proprietary process and further treated with inert lubricant.

Service: The packing is duplex braided which maintains uniform density and compressibility. This natural fiber has very great strength than any other vegetable fiber. The rot resistance is excellent. This packing is having high resilience, flexibility, resistance to extrusion and abrasion low wear character. Heat build up is negligible due to low friction properties

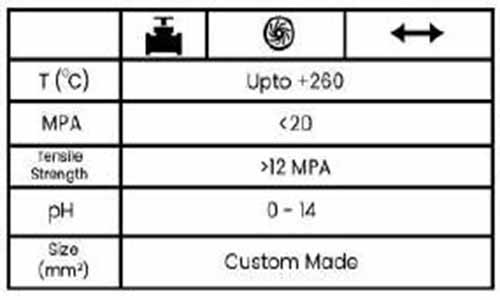

This is a unique sealing material manufactured from special grade of 100% expanded pure PTFE by transforming into fibrous Structure. Flex-O-seal has a special peel of adhesive on one side. Though very tough, our ePTFE Flex-O-Seal is soft & suited to all types of flanges, covers and narrow cavities. Due to its soft and flexible structure this rope gasket is an ideal seal under pressure without significant cold flow even on irregular badly damaged or corroded flange surfaces. once bolted this gasket rarely needs to be re-torqued. FLEX-O-SEAL is easy to install and is able to fill in severe surface irregularities. The flexible applications of this product allows reduction of inventory of ready made gaskets/envelopes, thereby the term UNIVERSAL JOINT GASKET.

Macer ePTFE Gasket Sheet is made of 100% PTFE. Microstructure gaskets promise tight seals at high or low load, its isotrophic property makes low creep relaxation and constant deformation as well. Most sheet types you could find soft lite & rigid type.

Certificate or test report:
BAM: Gasket material for reactivity with oxygen TA Luft certificate: MACER 1.0mm
unaffected by common chemicals
PH range 0-14
Non-contaminating, non toxic
Using temperature from -450 degree F for short time upto +600 Deg F
