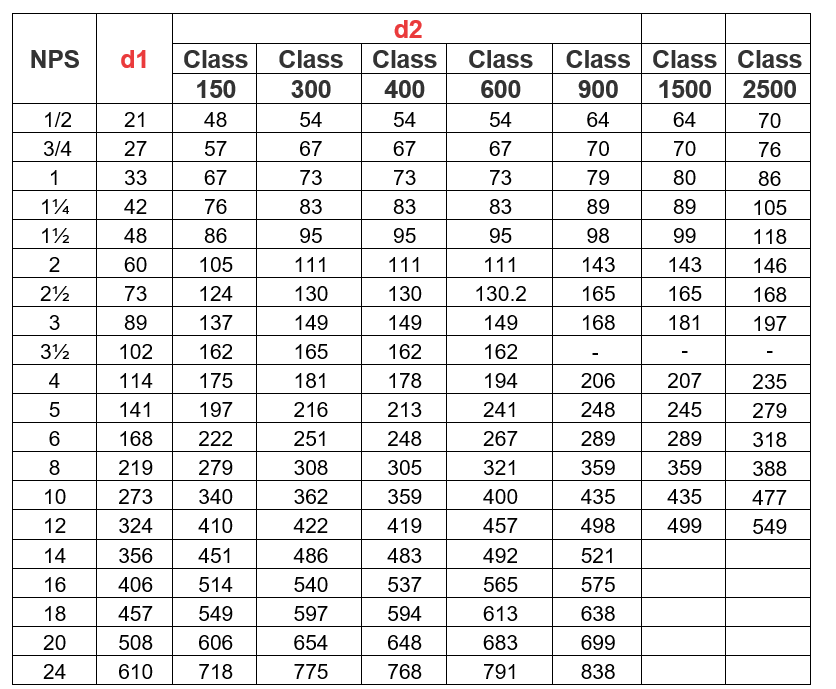

Ring Type Gasket Dimensions #150 to 2500 as per ASME B 16.21.

Dimensions Of Cut Gaskets as per ASME B16.21 Ring Type Gaskets

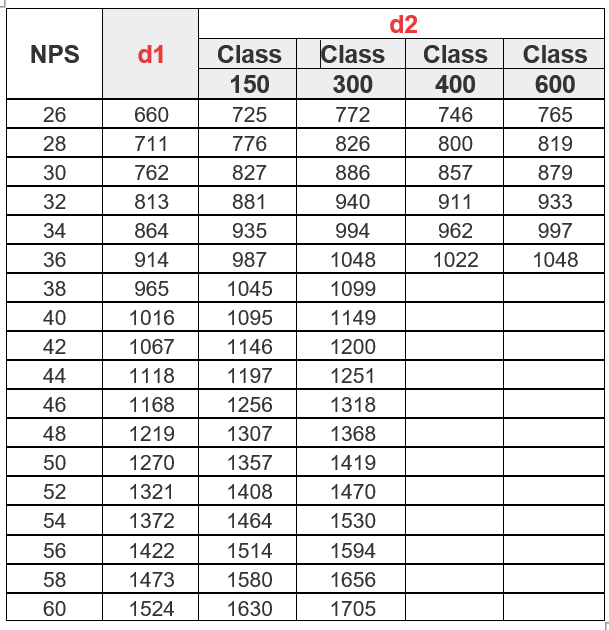

Ring Type Gasket Dimensions #150 to #600 as per B 16.47

SERIES A

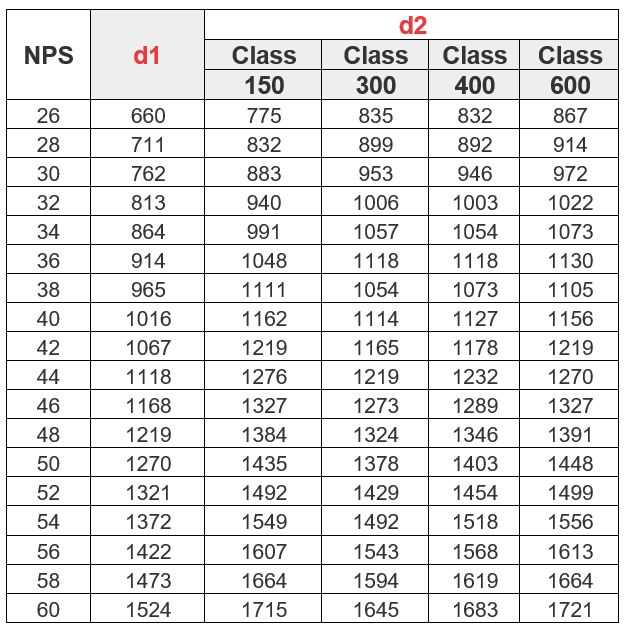

Ring Type Gasket Dimensions #150 to #600 as per B 16.47

SERIES B

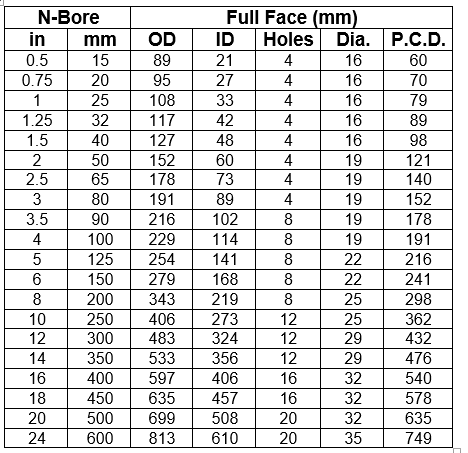

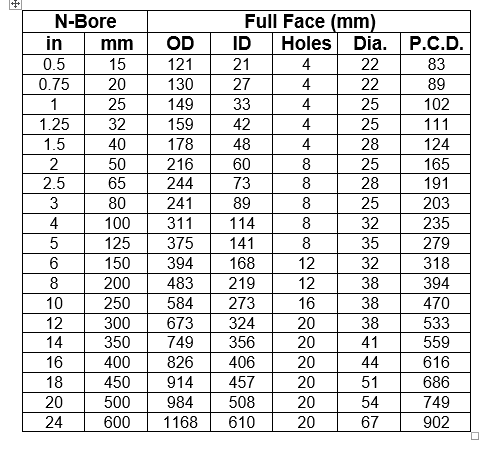

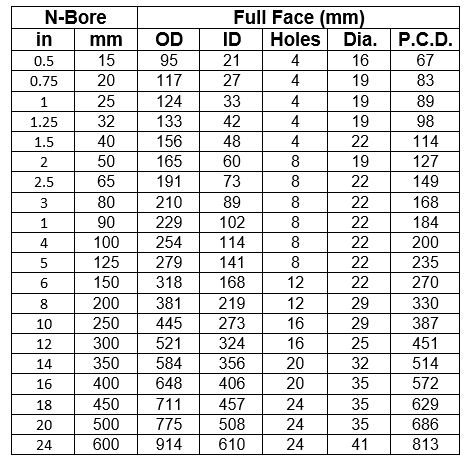

Full Face Gasket Dimensions as per ASME B16.21

#150

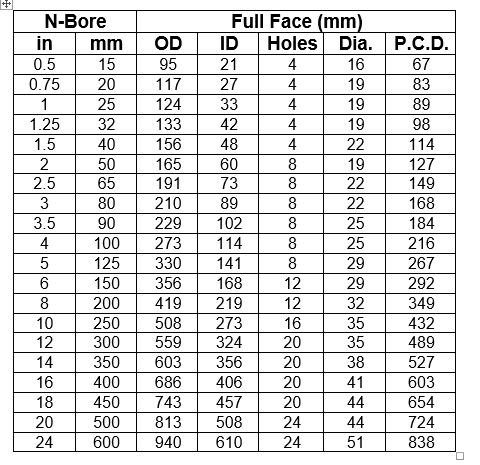

Full Face Gasket Dimensions as per ASME B16.21

#300

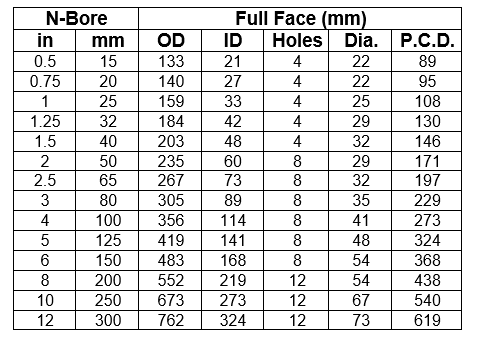

Full Face Gasket Dimensions as per ASME B16.21

#600

Full Face Gasket Dimensions as per ASME B16.21

#1500

Full Face Gasket Dimensions as per ASME B16.21

#2500

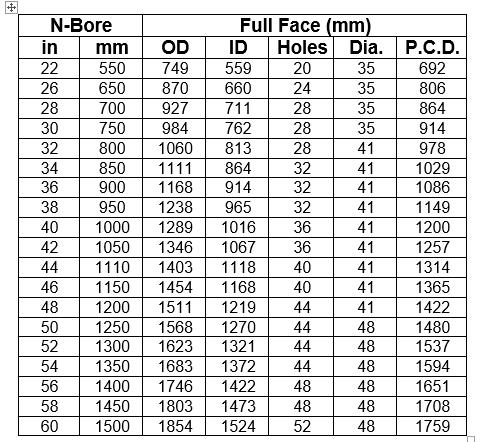

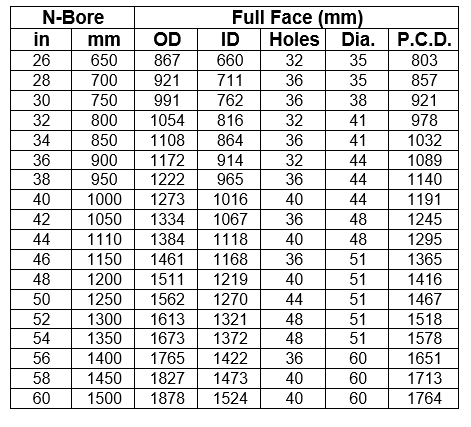

Full Face Gasket Dimensions as per ASME B16.47

Series A #150

Full Face Gasket Dimensions as per ASME B16.47

Series A #300

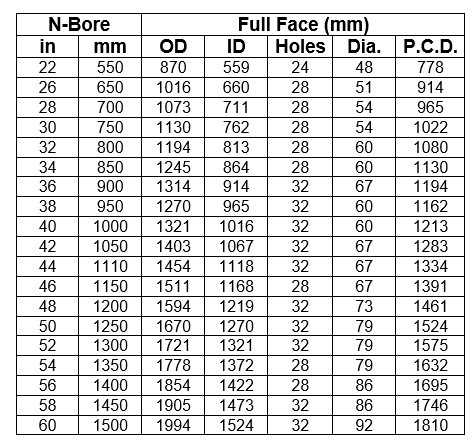

Full Face Gasket Dimensions as per ASME B16.47

Series A #600

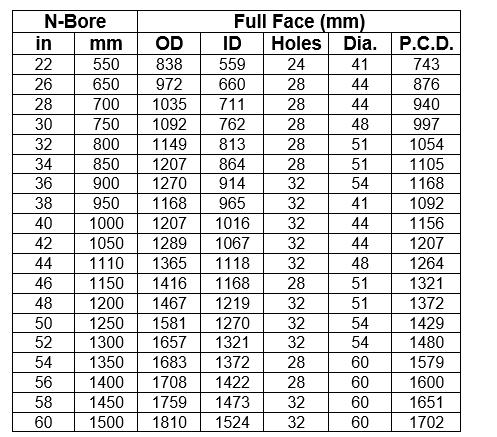

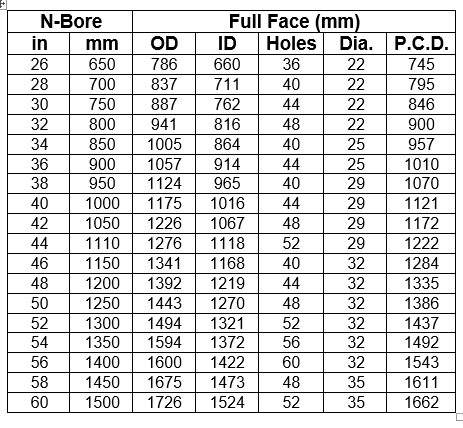

Full Face Gasket Dimensions as per ASME B16.47

Series B #150

Full Face Gasket Dimensions as per ASME B16.47

Series B#300

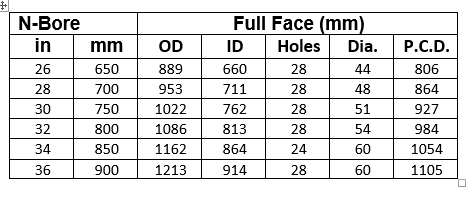

Full Face Gasket Dimensions as per ASME B16.47

Series B #600
